Antifreeze Filling Machine Engine Coolant Filler

Antifreeze Filling Machine is designed and manufactured by npack, suitable for filling high viscosity liquids. It is mainly controlled by servo motors and PLC, with fast filling speed and precision. It is an ideal packing equipment for filling Antifreeze.

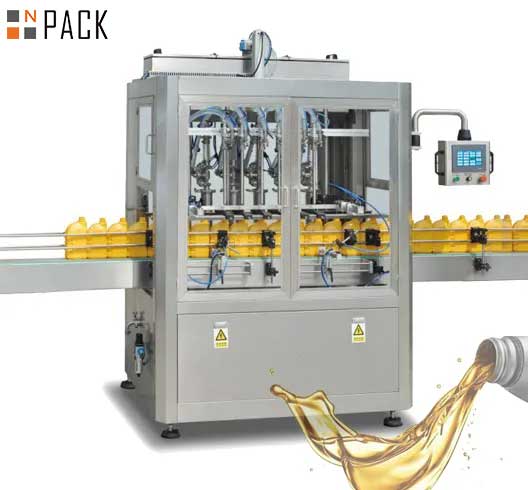

Antifreeze Filling Machine

Antifreeze Filling Machine is full automatic servo motor piston inline high speed bottle filling machine used for filling liquids, including shampoo, lubricating oil, edible oil, etc., with a filling range of 50ml to 5000ml; Provide 6, 8, 10, 12, and 16 nozzle configurations, equipped with pet bottle capping machines, oil bottle labeling machines, palletizing machines, and unboxing machines to form antifreeze production line to meet the diverse production requirements of customers, widely used in the food industry, daily chemical industry, personal care industry, chemical industry, and pharmaceutical industry.


Antifreeze Filling Machine
Antifreeze FillingMachine

Main Feature

1. The electrical components are selected from international brands, with stable performance and long service life
2. According to the customer’s generated needs, filling heads can be selected from 6, 8, 10, or 12 heads. The cylinder volume can be selected from 25-250ml, 50-500ml, and 100-1000ml.
3. Adopting servo motor and PLC control, the filling accuracy is high and the filling speed is fast.
4. The antifreeze filling machine is made of 304/316 grade stainless steel material, which meets GMP standards,
5. It can be filled up and down in a mobile way, effectively preventing foam, and easy to disassemble and clean.
6. The filling head has an anti drip function, which can effectively prevent dripping and wire drawing, ensuring filling accuracy
7.antifreeze filling machine, with a wide range of volume adjustment, suitable for automatic quantitative filling of 1-5L.


Firstly, the conveyor belt conveys the jerrycan/bucket to the filling mechanism. When the jerrycan/bucket reaches the filling mechanism, the PLC of the filling machine coordinates the filling process: the filling nozzle is usually made of stainless steel and descends above the jerrycan/bucket. The antifreeze is pumped out of the hopper and filled into the jerrycan/bucket through the filling nozzle. Sensors monitor the position of jerrycan/bucket and ensure accurate filling to the specified volume. Once the correct volume is reached, the filling nozzle will retract to prevent overfilling. Secondly, the jerrycan/bucket will sequentially transmit the capping machine for capping or pressing, and finally, the jerrycan/bucket will transmit the labeling machine for labeling the jerrycan/bucket.

Npack is a professional oil filling machine factory that provides oil filling lines according to customer production needs. If you are interested, please contact us

Product Detail

engine oil filling machine details
antifreeze filling machine details

Filling Accuracy: ±0.1-0.5%

Filling nozzles:2/4/6/8/10/12(customized)

Filling volume:50ml-5l  (Customized according to customer needs)

Bottle Type:Pail, Bucket, Bottle,Can

Packaging Type: Wooden Case

After Warranty Service:Video technical support

Applicable Industries:Food ;Pharmaceutical;Chemical;Cosmetic

Filling Materials: engine oil, lubricating oil, grease, motor oil,edible oil, etc.







NP-VF-6 NP-VF-8 NP-VF-10 NP-VF-12 NP-VF-16



4 6 8 10 12 16



Capacity(bpm)base on 500ml

12-14 24-28 36-42 48-56 60-70 70-80 80-100

Air Pressure(mpa)









No. Descriptions BRAND ITEM Remark
1 Servo Motor Inovance 2KW CHINA
2 Reducer Fenghua ATF1205-15 Taiwan
3 Conveyor Motor ZhenYu YZ2-8024 China
4 servo drivers Inovance LXM 23DU15M3X CHINA
6 Touch Screen Inovance HMZGXU3500 CHINA
7 Frequency Converter Schneider ATV12H075M2 France
8 Photo electricity of

Inspect bottle

9 Pneumatic Element Airtac Taiwan
10 Rotary Valve F07/F05 No Need for Oil
11 Pneumatic actuator F07/F05 No Need for Oil
12 Low-Voltage Apparatus Schneider FRANCE
13 proximity switch ROKO SC1204-N Taiwan
14 Bearing NSK JAPAN
15 Lead Screw TBI Taiwan
16 butterfly valve CHZNA china
17 Screw Lead Bearing NSK Japan
18 Straight Bearing NSK JAPAN
19 Sliding Bear IGUS Germany


This is engine oil antifreeze filling machine video
