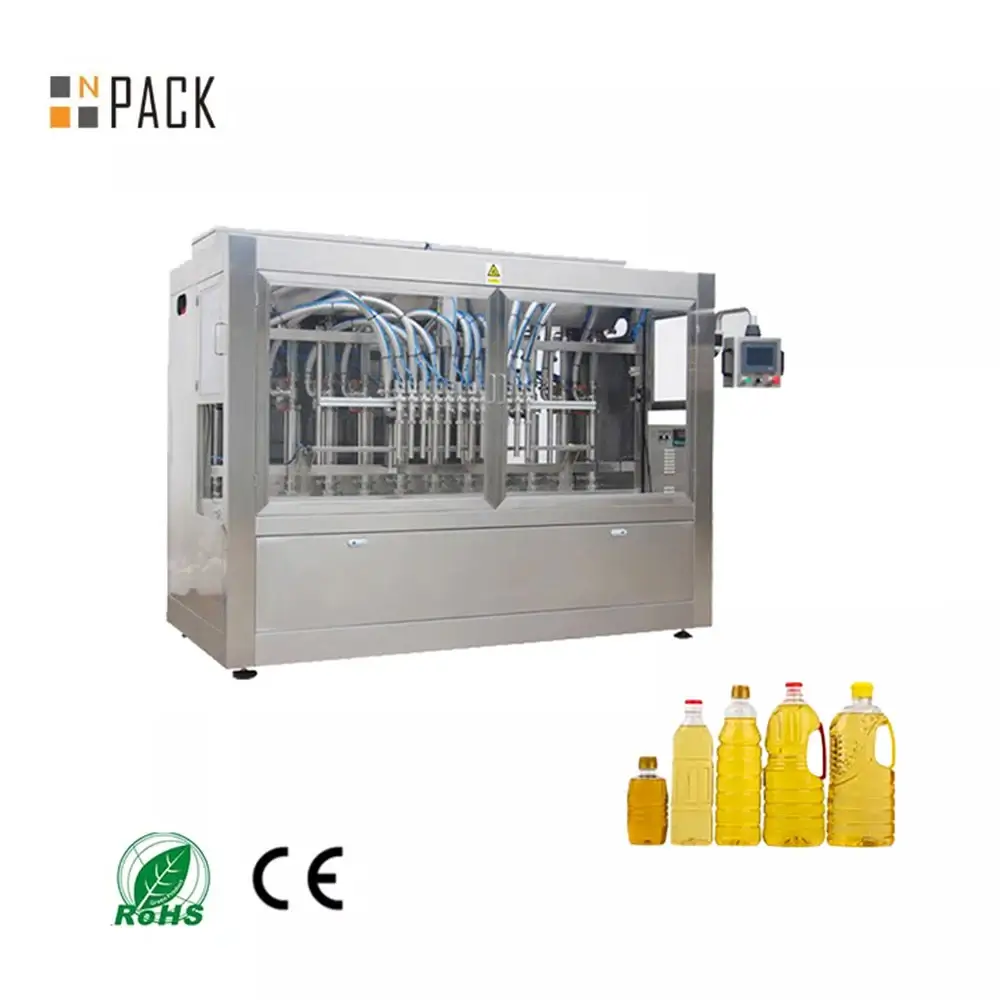

Automatic Edible Oil Filling Machine for Bottle

The automatic edible oil filling machine is a piston type oil filling machine developed by npack (automatic oil filling machine manufacturers), and it is an ideal automatic production equipment for packaging oil. It is suitable for quantitative filling of various oily high-viscosity liquids, such as: peanut oil, soybean oil, rapeseed oil, salad blend oil, sesame oil, olive oil, etc.; it can meet any quantitative filling within the range of 500ML-10L, and the filling accuracy is high , Fast speed and stable performance. It can be combined with packaging machines such as bottle washing machines, capping machines, and labeling machines to improve work efficiency. It is widely used in product filling in food, cosmetics, medicine, oil, daily chemical, detergent, pesticide, chemical and other industries.

Fully automatic edible oil filling machine is a special packaging equipment for filling oily liquids, which can accurately fill edible oil into containers. Widely used in food processing plants, bottling plants and manufacturing units to improve work efficiency and simplify the oil packaging process.
Structure and composition of edible oil filling machine:

1. Frame: The machine adopts a strong frame made of 304/316 grade stainless steel, which meets GMP standards, is hygienic and has a long service life.
2. Conveyor system: It is composed of a conveyor belt or chain, which transports the empty oil bottle to the bottom of the filling head, and transports the filled oil bottle away for packaging or labeling.
3. Hopper: A large storage container used to store oil and dispense oil into empty oil bottles
4. Filling nozzle: Customize the filling nozzle according to the customer’s needs and products, made of stainless steel. Specific anti-drip function
5. Control panel: one piece to set filling parameters, easy to operate
6. Servo motor: precise control of filling process

It is important to note that specific features and functions may be custom designed and produced according to customer needs


Main Feature

1. The human-machine interface of the automatic edible oil filling machine can directly set the filling volume, which is easy to operate;
2. High precision positive displacement flowmeter, high filling precision, the precision of automatic edible oil filling machine has reached ±≤0.5;
3. Adopt servo motor control and high-quality accessories to ensure the reliability, accuracy, stability and durability of the system operation.
4. Compared with other filling equipment, the piston filling machine occupies a small area, which is convenient for customer layout
5. Made of 304/316 stainless steel, in line with GMP standards, clean and hygienic, with long service life
6. Adopt PLC control, high degree of automation, with no bottle no filling, liquid level function
7. It can be used in conjunction with packaging equipment such as automatic capping machines, labeling, coding, packaging machines, etc. to improve production efficiency and save production costs

Product Detail

Filling Accuracy: ±0.5-1%

Filling Volume: 500ML-10l

Packaging Type: Strong Wooden Case

Applicable Industries:Food & Beverage Factory, Manufacturing Plant, Other

Filling Materials: Oil, Edible Oil, Olive Oil, Cooking Oil, Palm Oil, Lube Oil, etc.

Application Industry: Food, Beverage, Chemical, Industry 0il






NP-VF-6 NP-VF-8 NP-VF-10 NP-VF-12 NP-VF-16



4 6 8 10 12 16



Capacity(bpm)base on 500ml

12-14 24-28 36-42 48-56 60-70 70-80 80-100

Air Pressure(mpa)








No. Descriptions BRAND ITEM Remark
1 Servo Motor Inovance 2KW CHINA
2 Reducer Fenghua ATF1205-15 Taiwan
3 Conveyor Motor ZhenYu YZ2-8024 China
4 servo drivers Inovance LXM 23DU15M3X CHINA
6 Touch Screen Inovance HMZGXU3500 CHINA
7 Frequency Converter Schneider ATV12H075M2 France
8 Photo electricity of

Inspect bottle

9 Pneumatic Element Airtac Taiwan
10 Rotary Valve F07/F05 No Need for Oil
11 Pneumatic actuator F07/F05 No Need for Oil
12 Low-Voltage Apparatus Schneider FRANCE
13 proximity switch ROKO SC1204-N Taiwan
14 Bearing NSK JAPAN
15 Lead Screw TBI Taiwan
16 butterfly valve CHZNA china
17 Screw Lead Bearing NSK Japan
18 Straight Bearing NSK JAPAN
19 Sliding Bear IGUS Germany
