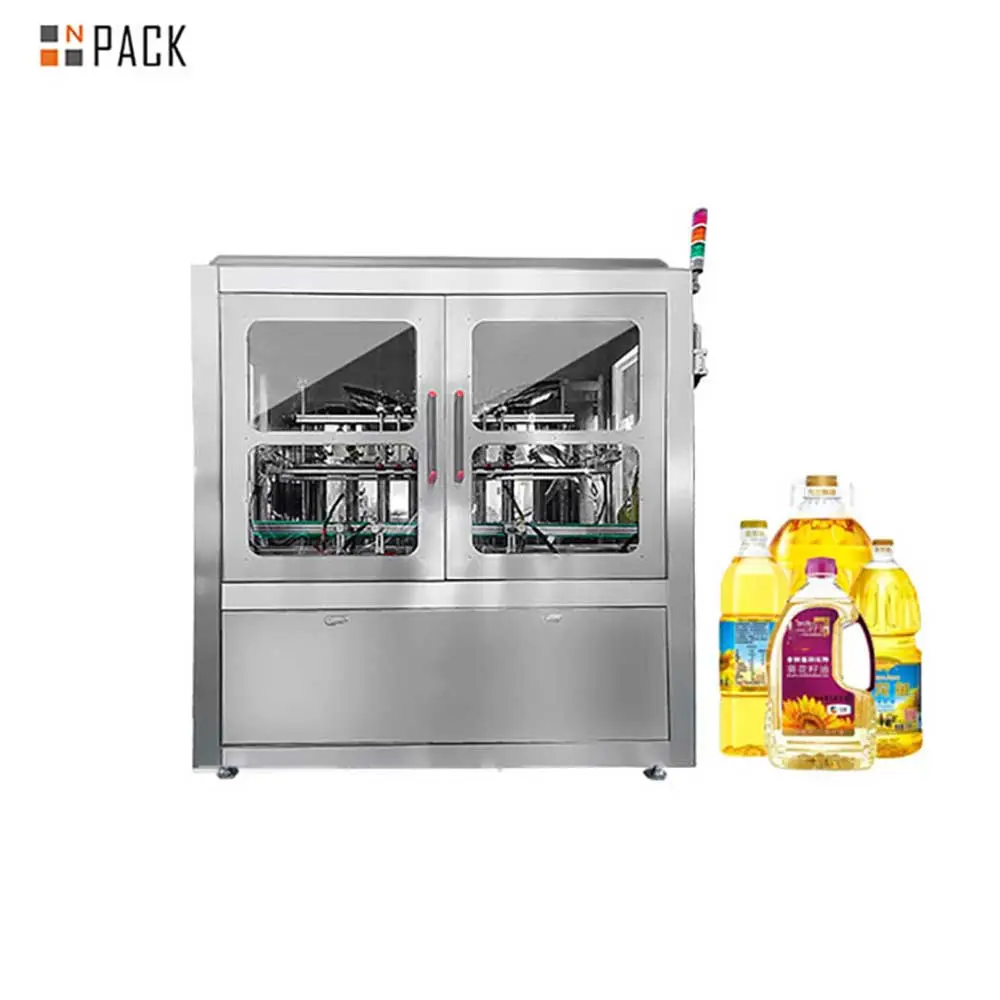

Coconut Oil Filling Machine Oil Filling Machine Suppliers

The coconut oil filling machine is mainly used for quantitative filling of corn oil, palm oil, soybean oil and other oily liquids. It adopts PLC automatic control, man-machine interface, and submersible filling. High measurement accuracy, large filling range, wide range of applicable bottle types, meeting the diverse needs of customers and saving costs. All parts in contact with materials are made of stainless steel, and the main electrical components are brand-name, with long service life and stable performance.

Npack automatic Coconut oil filling machine is a pisotn filling machine, an volmetric measuring system, it is suitable for viscous liquid filling, such as: honey, sauce, cooking oil, shampoo and so on. Packed into small barrels or small bottles, it is an ideal automatic production equipment for small-package oils. It has 4 advantages and overcomes the problems of imprecise filling and difficult operation.

Coconut oil oil filling machine

1. Anti-drip coconut oil filling machine

Compare to the traditional filling method, Npack solved the problem of oil dopping during filling, and improve filling accuracy.The vacuum anti drops filling nozzles specially designed.
2. Independent servo volometic quantitative system
The Siemens or panasonic servo motor is selected to accurately control the filling process. At the same time, it cooperates with PLC control to ensure that the filling process is accurate, reliable and stable. The accuracy can reach ± 0.1%. Quantitative filling can be made according to customer needs.
3. Intelligent filling system
The filling method of one head and one pump can effectively improve the stability and accuracy of filling, independent fine-tuning, and easy maintenance. One-key switching, automatic proofreading. When filling materials of different specifications and densities, the parameters can be preset and stored, and can be switched with one key during use, making the operation easier and more convenient
4. Sanitary stainless steel 304/316 material
The parts in contact with the material are made of sanitary stainless steel 304/316, which is pollution-free during the filling process and meets GMP standards.

Main Feature

1. Servo piston filling, the filling head is equipped with an anti-drip device, no dripping, high precision.
2. Color Chinese and English touch screen display, intelligent control, intuitive operation,
3. Made of SUS304 and 316L stainless steel, fully complying with GMP requirements.
4.PLC computer control system, the operation is more stable, and any parameter can be adjusted without stopping the machine.
5. Small footprint, low noise, clean working environment.
6. Customized production can be made according to the customer’s output, and it can also be combined with packaging machinery such as capping machine, labeling, coding, etc. to form a production line to improve production efficiency

Product Detail

Filling Accuracy: ±0.5-1%

Filling volume:500ml-5l can be customized

Video outgoing-inspection:Provided

Packaging Type: Strong Wooden Case

After Warranty Service:Video technical support

Applicable Industries:Food & Beverage Factory, Manufacturing Plant, Other

Filling Materials: Oil, Edible Oil, Olive Oil, Sauce, Honey, Lube Oil, etc.

Application Industry: Food, Beverage, Chemical, Industry 0il






NP-VF-6 NP-VF-8 NP-VF-10 NP-VF-12 NP-VF-16



4 6 8 10 12 16



Capacity(bpm)base on 500ml

12-14 24-28 36-42 48-56 60-70 70-80 80-100

Air Pressure(mpa)








No. Descriptions BRAND ITEM Remark
1 Servo Motor Inovance 2KW CHINA
2 Reducer Fenghua ATF1205-15 Taiwan
3 Conveyor Motor ZhenYu YZ2-8024 China
4 servo drivers Inovance LXM 23DU15M3X CHINA
6 Touch Screen Inovance HMZGXU3500 CHINA
7 Frequency Converter Schneider ATV12H075M2 France
8 Photo electricity of

Inspect bottle

9 Pneumatic Element Airtac Taiwan
10 Rotary Valve F07/F05 No Need for Oil
11 Pneumatic actuator F07/F05 No Need for Oil
12 Low-Voltage Apparatus Schneider FRANCE
13 proximity switch ROKO SC1204-N Taiwan
14 Bearing NSK JAPAN
15 Lead Screw TBI Taiwan
16 butterfly valve CHZNA china
17 Screw Lead Bearing NSK Japan
18 Straight Bearing NSK JAPAN
19 Sliding Bear IGUS Germany
