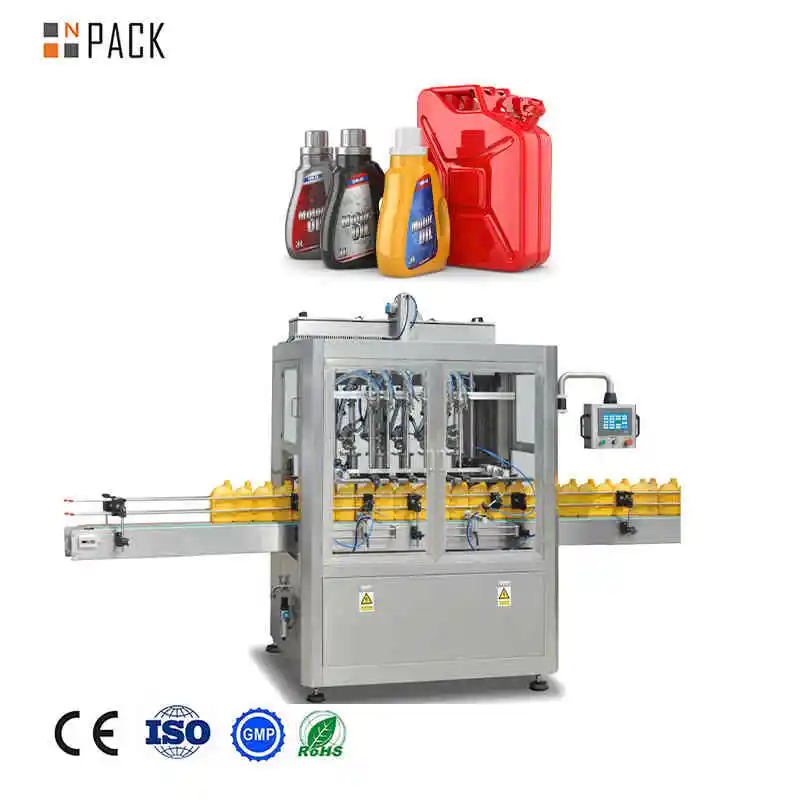

Engine Oil Filling Machine Automatic Oil Bottling Machine

The engine oil filling machine is a filling mechanical equipment used to fill lubricating oil, which belongs to the liquid filling machine. The filling machine adopts piston filling, which precisely controls the filling capacity, and the filling accuracy can reach ±0.1%. Widely used in lubricating oil, edible oil, glass water, detergent, wine, cosmetics and other industries.

Engine oil filling machines can be divided into semi-automatic engine oil filling and fully automatic engine oil  filling machines according to the degree of automation of the equipment.
The automatic engine oil filling machine adopts an intelligent control system, one-button switching, automatic filling, automatic feedback, automatic proofreading, no filling without bottle. The whole process is fully automated. The semi-automatic engine oil filling machine refers to that in addition to filling, it is mainly operated manually, such as manual bottle placement, manual proofreading, manual bottle changing, etc., and the speed is extremely slow.

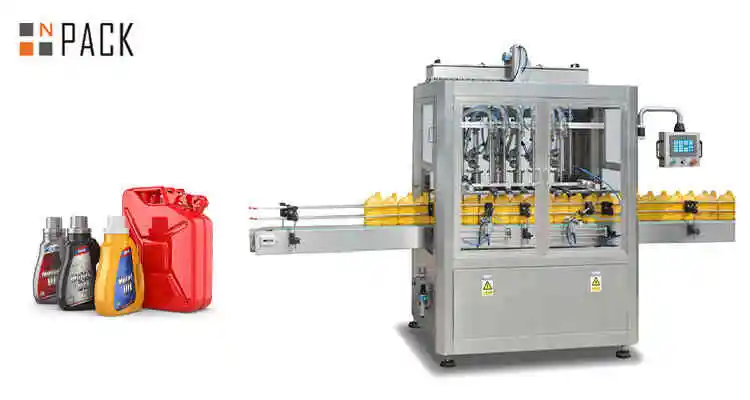

engine oil filling machine

Main Feature

1. 2-18 heads can be customized according to the actual filling needs of customers, compatible with various bottle types and barrel types, easy to operate, and stable in performance.
2. Piston filling and servo control system are adopted, the filling process is accurate and reliable, and the accuracy can reach ±0.1%, which is convenient for switching between various filling capacities
3. The piston filling machine occupies a small area, which is convenient for customer layout and saves enterprise costs.
4. The filling head has anti-drip function, no dripping or leakage during filling, and high filling accuracy
5. The touch screen has a friendly interface, supports multi-language switching, one-key setting parameters, simple operation, stable performance and excellent quality.
6. The oil filling machine is linear, easy to adjust, suitable for switching between various bottle types

Maintenance Method

1. Follow the manufacturer’s guidelines and maintenance manuals and guidelines for specific maintenance procedures and recommended intervals.
2. Regularly clean parts such as filling nozzles, conveyor belts and hoppers, remove spilled oil, debris or dust, and keep the machine clean.
3. Regularly and properly lubricate all moving parts, bearings, and mechanical parts using the manufacturer’s recommended lubricant.
4. Regularly check the flow control system to ensure its accuracy in filling
5 Regularly check electrical connections, wiring and components to reduce the occurrence of circuit failures
6 Regularly check the wear of the conveyor belt and rollers, and replace them if necessary.

Product Detail

engine oil filling machine details
engine oil filling machine details

Filling Accuracy: ±0.1-0.5%

Filling volume:500ml-5l can be customized

Bottle Type:Pail, Bucket, Bottle,Can

Packaging Type: Strong Wooden Case

After Warranty Service:Video technical support

Applicable Industries:Food ;Pharmaceutical;Chemical;Cosmetic

Filling Materials: Edible Oils;Pharmaceutical Oils; Essential Oils;Lubricants etc.







NP-VF-6 NP-VF-8 NP-VF-10 NP-VF-12 NP-VF-16



4 6 8 10 12 16



Capacity(bpm)base on 500ml

12-14 24-28 36-42 48-56 60-70 70-80 80-100

Air Pressure(mpa)








No. Descriptions BRAND ITEM Remark
1 Servo Motor Inovance 2KW CHINA
2 Reducer Fenghua ATF1205-15 Taiwan
3 Conveyor Motor ZhenYu YZ2-8024 China
4 servo drivers Inovance LXM 23DU15M3X CHINA
6 Touch Screen Inovance HMZGXU3500 CHINA
7 Frequency Converter Schneider ATV12H075M2 France
8 Photo electricity of

Inspect bottle

9 Pneumatic Element Airtac Taiwan
10 Rotary Valve F07/F05 No Need for Oil
11 Pneumatic actuator F07/F05 No Need for Oil
12 Low-Voltage Apparatus Schneider FRANCE
13 proximity switch ROKO SC1204-N Taiwan
14 Bearing NSK JAPAN
15 Lead Screw TBI Taiwan
16 butterfly valve CHZNA china
17 Screw Lead Bearing NSK Japan
18 Straight Bearing NSK JAPAN
19 Sliding Bear IGUS Germany
