Essential Oil Filling and Capping Machine Automatic

Essential Oil Filling and Capping Machine is mainly used in the filling production line of small-dose products, suitable for eye drops, e-liquid, reagents, etc., and can realize automatic filling, peristaltic pump filling, positioning cap, high-speed cap turning, and automatic labeling. essential oil filling machine Widely used in liquid filling in pharmaceutical and daily chemical industry. The whole machine is made of 304/316 stainless steel, in line with GMP standards.

Essential Oil Filling and Capping Machine Description

Essential Oil Filling and Capping Machine is an integrated equipment for filling and capping. The essential oil filling machine integrates bottle conveying, filling, cap sorting, capping and bottle discharging. Filling with a peristaltic pump has high filling accuracy, fast speed and high degree of automation; it has functions such as no bottle no filling, no bottle no capping, etc., and can be used in conjunction with packaging equipment such as labeling machines, sealing machines, and palletizers; it is equipped with a Siemens touch screen to directly set the filling volume and filling speed, with simple operation and stable performance.

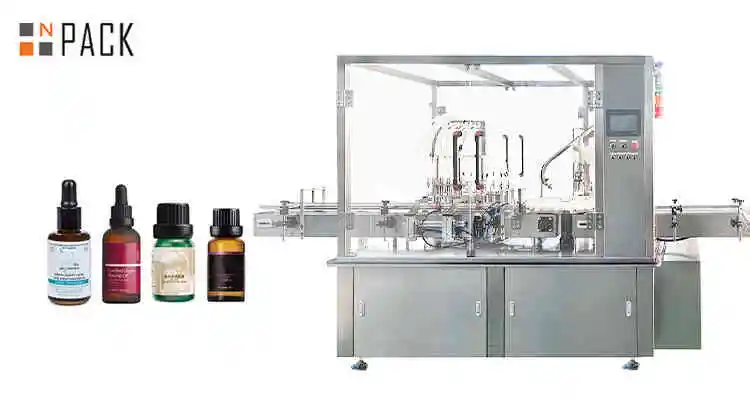

Essential oil filling and capping machine
Essential oil filling and capping machine

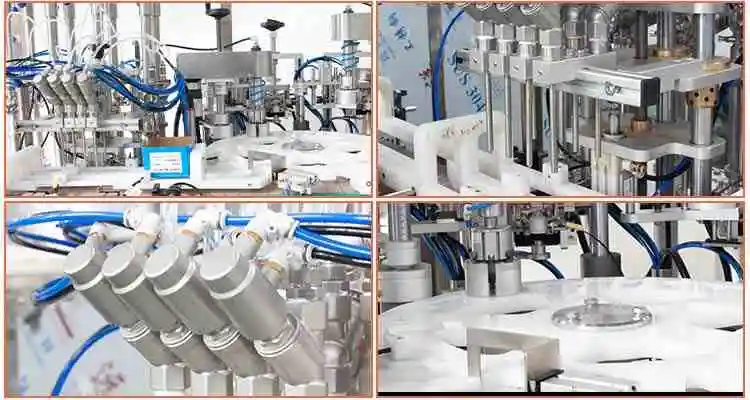

 Essential Oil Filling Machine Components

Filling system: The filling system accurately fills the quantitative essential oil into each bottle, and controls the oil flow to prevent overflow
Capping system: The capping system is to tightly screw the cap onto the filled bottle to realize automatic sealing. According to the characteristics of the cap, you can choose a cap screwing machine, a capping machine, a grasping screw machine and so on.
Conveyor system: The main function is to transport empty bottles to the filling station in turn, then to the capping station, and finally to the turntable to complete one filling and capping.
Bottle unscrambling system; the main functions are bottle feeding, bottle discharging, and bottle collection. The whole process is fully automated, improving work efficiency and saving business costs.
Safety system: There are safety functions such as emergency stop button and safety interlock on the touch screen to improve safety

Essential Oil Filling and Capping Machine Main Feature

1. High degree of automation, fast speed, good adaptability and stability, which are well received by users.
2. Filling with peristaltic pump, high filling accuracy, simple and easy to operate
3. PLC control system, color touch screen display, no bottle, no filling, no capping
4. This machine can be used in conjunction with labeling machines, coding machines, palletizing machines, etc.
5. The whole machine has a beautiful appearance, integrates filling and capping, occupies a small area, and is convenient for layout


Product Detail

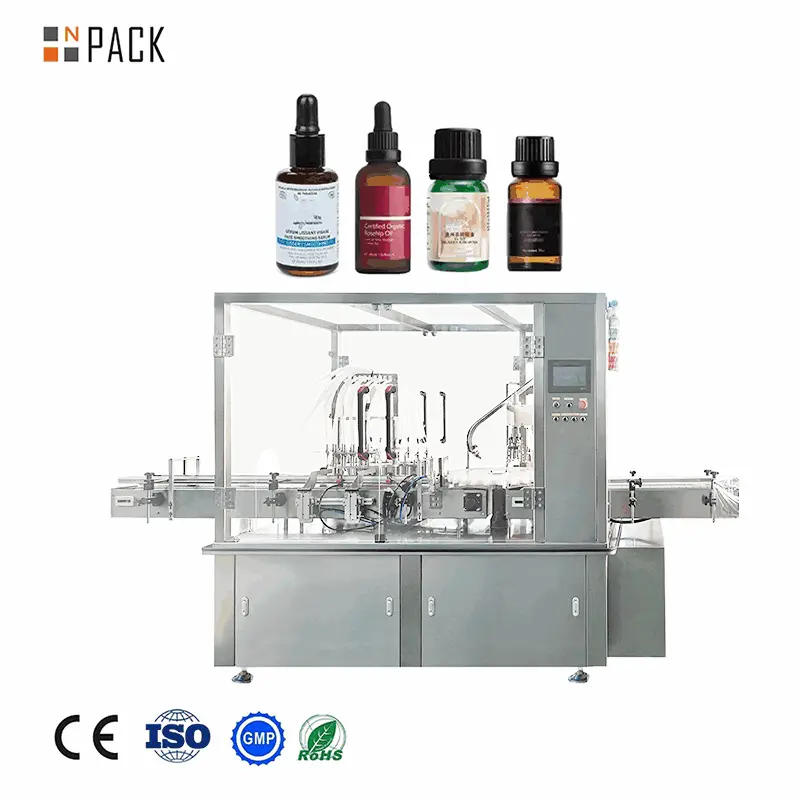

Essential Oil Filling and Capping Machine
Essential Oil Filling and Capping Machine

Filling Accuracy: ±0.1-0.5%

Filling nozzles:2/4/6(customized)

Filling volume:5ml-250ml  (Customized according to customer needs)

Bottle Type:vial, glass bottle, perfume bottle, ampoule bottle,etc.

Packaging Type: Wooden Case

After Warranty Service:Video technical support

Applicable Industries:Food ;Pharmaceutical;Chemical;Cosmetic

Filling Materials: eye drop, syrup, oral liquid, cbd oil,e-liquid, etc.




Production capacity
30-40 bottles/minute
Filling nozzle
2 nozzles
Filling accuracy
Press capping nozzles
1 nozzles
Capping rate
99% or more (depending on the characteristics of plug appropriate adjustment)
Speed control
frequency control
Bottle size
More than 10 mm
The power supply
380 V 50 Hz
2 kw
Air supply
Gas consumption
Overall dimensions
3000×1300×1700 mm
