Mustard Oil Filling Machine Automatic Bottle Filling

The mustard oil filling machine is a multifunctional filling machine that can fill a variety of viscous liquids, including pastes, oils, lotions, jams, sauces, honey, tomato paste, etc. Adopt servo motor and PLC control, equipped with color Chinese and English touch screen, human-computer interaction interface system, one-key setting of filling volume, filling speed and other parameters, simple and convenient.

Mustard Oil Filling Machine Description

Mustard oil is a vegetable oil mainly extracted from mustard and black mustard. The color is light yellow. It is rich in trace elements and meets the nutrition needed by the body. It is a popular edible oil and condiment in Southeast Asia. The market demand is strong. Therefore, npack designs and produces a mustard oil filling machine based on the characteristics of mustard oil.

The mustard oil filling machine is a volumetric quantitative filling machine, which adopts an in-line structure, one head and one pump filling method, and has high filling accuracy; the whole machine is made of 304/316 grade stainless steel, which fully complies with GMP standards; it can fill a large amount of raw materials in a short time; it is equipped with a u-type tank, which has the function of heating and stirring; CIP one-button cleaning, easy to operate; improve production efficiency and save production costs.It is the ideal machine for filling oil.

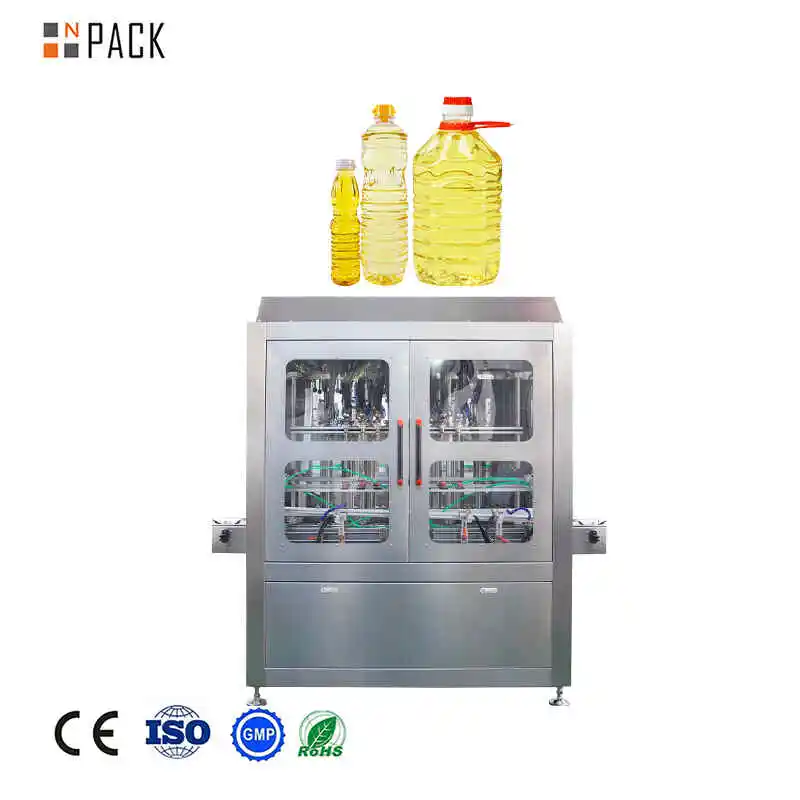

Mustard Oil Fillig Machine
Mustard Oil Fillig Machine

Mustard Oil Filling Machine Main Feature:

1. The connection between the filling head and the food-grade pipeline adopts a quick connection, which is convenient for quick cleaning and replacement.
2. The mustard oil packaging machine supports customized production of 2, 4, 6, 8, and 12 filling heads according to the needs of customers.
3. The whole body is made of 304/316 stainless steel, which meets the food-grade filling requirements, has strong corrosion resistance and long service life
4. No filling without bottle, automatic calibration, emergency stop button, high safety performance
5. High degree of automation, automatic bottle feeding, filling and bottle discharging can be realized in the whole process.
6. Use the submerged filling head to effectively prevent dripping
7. The mustard oil bottle filling machine adopts piston servo drive for filling, with high filling precision and fast speed
8. The mustard oil bottle filling machine is linear as a whole, with simple structure, small footprint and easy to use.
9. Color touch screen display, one key to adjust any parameter.

Product Detail

画板 5

Filling Accuracy: ±0.1-0.5%

Filling volume:500ml-5l can be customized

Bottle Type:Pail, Bucket, Bottle,Can

Packaging Type: Strong Wooden Case

After Warranty Service:Video technical support

Applicable Industries:Food ;Pharmaceutical;Chemical;Cosmetic

Filling Materials: Edible Oils;Pharmaceutical Oils; Essential Oils;Lubricants etc.







NP-VF-6 NP-VF-8 NP-VF-10 NP-VF-12 NP-VF-16



4 6 8 10 12 16



Capacity(bpm)base on 500ml

12-14 24-28 36-42 48-56 60-70 70-80 80-100

Air Pressure(mpa)








No. Descriptions BRAND ITEM Remark
1 Servo Motor Inovance 2KW CHINA
2 Reducer Fenghua ATF1205-15 Taiwan
3 Conveyor Motor ZhenYu YZ2-8024 China
4 servo drivers Inovance LXM 23DU15M3X CHINA
6 Touch Screen Inovance HMZGXU3500 CHINA
7 Frequency Converter Schneider ATV12H075M2 France
8 Photo electricity of

Inspect bottle

9 Pneumatic Element Airtac Taiwan
10 Rotary Valve F07/F05 No Need for Oil
11 Pneumatic actuator F07/F05 No Need for Oil
12 Low-Voltage Apparatus Schneider FRANCE
13 proximity switch ROKO SC1204-N Taiwan
14 Bearing NSK JAPAN
15 Lead Screw TBI Taiwan
16 butterfly valve CHZNA china
17 Screw Lead Bearing NSK Japan
18 Straight Bearing NSK JAPAN
19 Sliding Bear IGUS Germany
