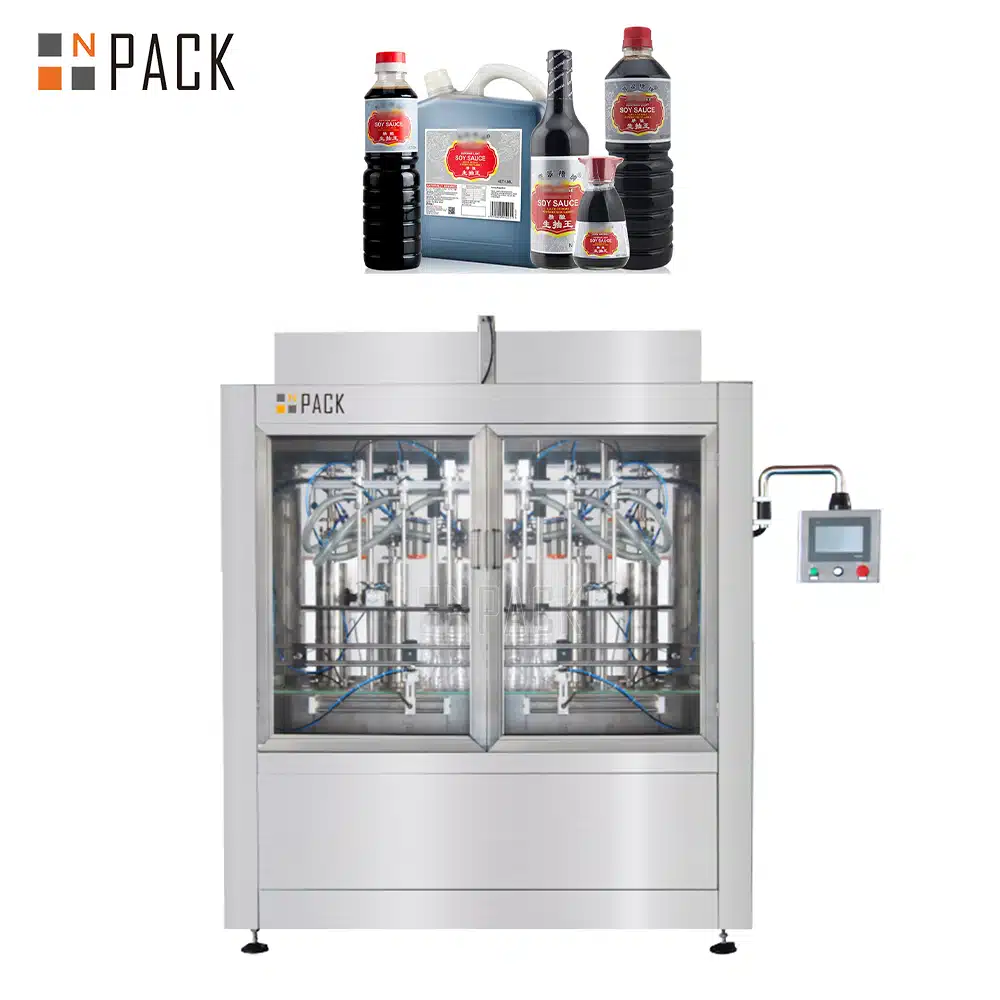

Soy Sauce Filling Machine Automatic for Bottle

The soy sauce filling machine is manufactured by npack. It adopts the piston servo drive principle and is suitable for non-viscous or low-viscosity liquid materials, such as: edible vinegar, white wine, fruit vinegar, oil, chicken juice, sauce, cooking wine and so on. Equipped with capping machine, labeling machine, packaging system, etc. to form a complete assembly line, the equipment is customized according to the specific requirements of customers.

Category:

The soy sauce filling machine is a special equipment used in the food and beverage industry. Its main function is to fill soy sauce into containers such as bottles or jars. Automate the filling process, improve efficiency and accuracy, and reduce production costs.

soy sauce filling machine work flow

The working principle of soy sauce filling machine usually includes the following steps:
Container placement: Empty soy sauce bottles/jars are placed on the conveyor belt
Container transport: The conveyor belt transports the empty soy sauce bottles/jars to the filling station, positioning them precisely under the filling nozzles.
Filling nozzle: The filling machine is equipped with one or more filling spouts for dispensing sauce into containers. The number of nozzles depends on the customer’s output.
Soy sauce supply: Soy sauce is supplied from the hopper to the filling machine. To ensure uninterrupted filling.
Filling process: When the empty soy sauce bottle/jar is located under the filling nozzle, the filling nozzle fills the required amount of soy sauce into each container.
In this way, the soy sauce filling machine completes the quantitative filling, and the whole process is fully automated, which greatly improves the production efficiency.

Soy Sauce Filling Machine Main Features

1. The whole machine is made of 304/316 stainless steel, which has strong corrosion resistance and meets GMP standards.
2. Various types of bottle filling, wide filling range, switching within a few minutes, short filling cycle and high production capacity.
3. Touch screen to set parameters, easy to operate and easy to maintain.
4. The filling head can be customized according to the customer’s production volume to meet the diverse needs of customers
5. Equipped with a U-shaped hopper with heating and stirring functions to ensure uniform filling of materials
6. The submersible filling head is used, which is suitable for filling various liquids that are easy to start.
7. Using servo motor control, piston quantitative filling, accurate filling, stable performance





Application

Bottle Type: Plastic Bottle, PET Bottle, Plastic Jar,Conical Flask,Pail

Filling Volume: 100ML, 250ML, 500ML, 1L, 2L, 3L, 4L, 5L

Filling Materials:Soy sauce, Vinegar, Wine, Seasoning sauce, Oyster sauce, etc.

Application Industry: Food, Beverage, Chemical, Industry 0il

Parameter

Model

NP-VF-2

NP-VF-4

 NP-VF-6 NP-VF-8 NP-VF-10 NP-VF-12 NP-VF-16

Heads

2

 4 6 8 10 12 16

Range（ml）

100-500,100-1000,1000-5000

Capacity（bpm）base on 500ml

 12-14 24-28 36-42 48-56 60-70 70-80 80-100

Air Pressure（mpa）

0.6

Accuracy（%）

±0.1-0.3

Power

220VAC SINGLE PHASE 1500W

 220VAC SINGLE PHASE 3000W

Components

No. Descriptions BRAND ITEM Remark
1 Servo Motor Inovance 2KW CHINA
2 Reducer Fenghua ATF1205-15 Taiwan
3 Conveyor Motor ZhenYu YZ2-8024 China
4 servo drivers Inovance LXM 23DU15M3X CHINA
5 PLC Inovance TM218LDALCODR4PHN CHINA
6 Touch Screen Inovance HMZGXU3500 CHINA
7 Frequency Converter Schneider ATV12H075M2 France
8 Photo electricity of

Inspect bottle

 OPTEX BRF-N Japan
9 Pneumatic Element Airtac Taiwan
10 Rotary Valve F07/F05 No Need for Oil
11 Pneumatic actuator F07/F05 No Need for Oil
12 Low-Voltage Apparatus Schneider FRANCE
13 proximity switch ROKO SC1204-N Taiwan
14 Bearing NSK JAPAN
15 Lead Screw TBI Taiwan
16 butterfly valve CHZNA china
17 Screw Lead Bearing NSK Japan
18 Straight Bearing NSK JAPAN
19 Sliding Bear IGUS Germany

After-sale Service

1. Installation and debugging: NPack provides installation services to assist in the debugging process, including testing and fine-tuning the machine,
To ensure that the packaging machinery is properly set up and ready for operation.
2. Training and education: In order to help customers operate machines effectively, NPack provides training courses for customers’ employees. This includes machine operation, maintenance, troubleshooting, and safety protocols. Training can be conducted on-site or online
3. Maintenance and repair: NPack provides maintenance services to maintain the machine in good working condition. It includes regular inspection, preventive maintenance tasks and replacement of worn parts. If a malfunction occurs, NPack can provide repair services, which can be conducted on-site or through online diagnosis
4. Spare parts and consumables: NPack provides vulnerable parts required for packaging machinery. Customers can quickly obtain the necessary components to effectively maintain and repair their machines.
5. Technical support and troubleshooting: NPacks typically provide technical support to assist customers in resolving any issues they may encounter during machine operation. This can include remote troubleshooting, telephone support, and on-site diagnosis to ensure resolution of customer issues.
