Tomato Sauce Filling Machine for Bottle/Jar

Automatic tomato sauce  filling machine belongs to sauce filling equipment, it can fill various paste and sauce such as jam, peanut butter, tomato sauce, etc

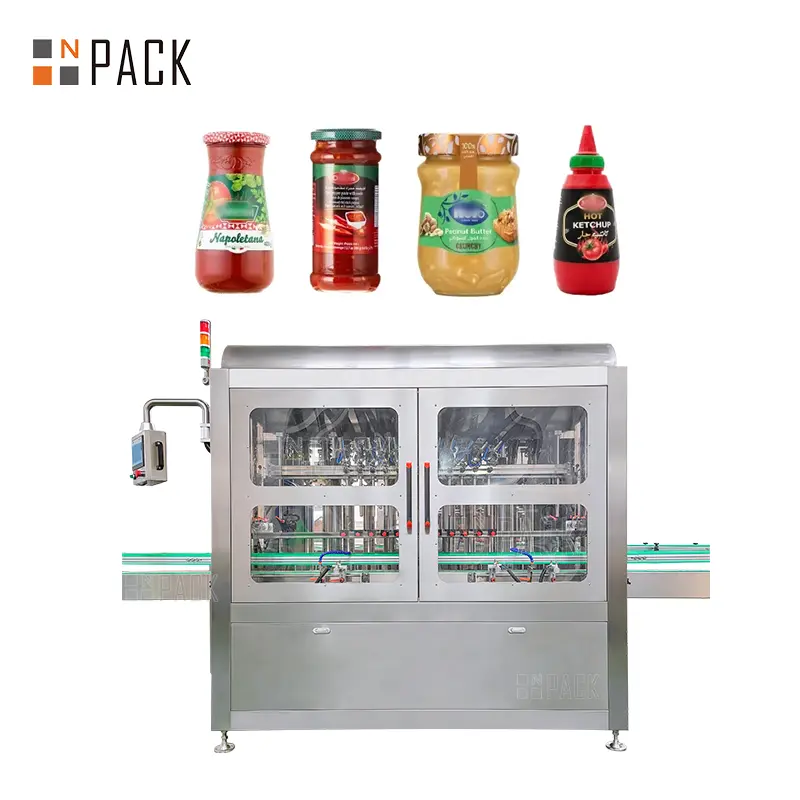

Tomato Sauce Filling Machine

The  tomato sauce filling machine is manufactured by NPACK, overcoming problems such as inaccurate filling and uneven mixing. Using servo motor to control piston quantitative filling, precise measurement and easy adjustment; Equipped with a U-type hopper with heating and stirring functions to evenly distribute materials; All materials in contact with each other are made of 314/316stainless steel and fully comply with GMP standards. It can be combined with tomato sauce vacuum capping machine, tomato sauce labeling machine, bottle washing machine, and other filling equipment to form a tomato sauce production line, achieving automated production of tomato sauce.

The automatic piston type ketchup filling machine is suitable for filling liquid, jam and various high viscosity liquids, such as jam, honey, chili sauce and paste, Mayonnaise, etc., and is widely used in the food and beverage industry

Tomato Sauce Filling Machine Mian Feature

1.U-type hopper, no dead corners, easy to clean

2.Using servo motor to control piston quantitative filling, precise filling

3.Made of stainless steel in contact with materials, using food grade hoses that fully comply with GMP standards;

4.PLC control, color touch screen operation, high degree of automation, one click adjustment, convenient operation, and stable performance

5.Provide customized services and customize filling heads such as 4/6/8/12/according to the customer’s production capacity.

6.Wide filling range, suitable for a variety of bottle types, to meet the diverse needs of customers

7.The filling head of the tomato sauce filling machine is equipped with a leak proof device, and there is no drawing or dripping during filling.

After-sale Service

1. Installation and debugging: NPack provides installation services to assist in the debugging process, including testing and fine-tuning the machine,
To ensure that the packaging machinery is properly set up and ready for operation.
2. Training and education: In order to help customers operate machines effectively, NPack provides training courses for customers’ employees. This includes machine operation, maintenance, troubleshooting, and safety protocols. Training can be conducted on-site or online
3. Maintenance and repair: NPack provides maintenance services to maintain the machine in good working condition. It includes regular inspection, preventive maintenance tasks and replacement of worn parts. If a malfunction occurs, NPack can provide repair services, which can be conducted on-site or through online diagnosis
4. Spare parts and consumables: NPack provides vulnerable parts required for packaging machinery. Customers can quickly obtain the necessary components to effectively maintain and repair their machines.
5. Technical support and troubleshooting: NPacks typically provide technical support to assist customers in resolving any issues they may encounter during machine operation. This can include remote troubleshooting, telephone support, and on-site diagnosis to ensure resolution of customer issues.


Bottle Type: Plastic Bottle, PET Bottle,Squeeze Sauce Bottle, Glass Jar, Heteromorphic Bottle,Seasoning bottle

Filling Volume: 100ML-1000ML

Filling Materials:Pesto Sauce, Sweet Chili Sauce, Bbq Sauce, Mornay Sauce ,Peanut Sauce, honey,etc.

Application Industry: Food, Beverage, Chemical, Industry 0il





NP-VF-6 NP-VF-8 NP-VF-10 NP-VF-12 NP-VF-16



4 6 8 10 12 16



Capacity(bpm)base on 500ml

12-14 24-28 36-42 48-56 60-70 70-80 80-100

Air Pressure(mpa)








No. Descriptions BRAND ITEM Remark
1 Servo Motor Inovance 2KW CHINA
2 Reducer Fenghua ATF1205-15 Taiwan
3 Conveyor Motor ZhenYu YZ2-8024 China
4 servo drivers Inovance LXM 23DU15M3X CHINA
6 Touch Screen Inovance HMZGXU3500 CHINA
7 Frequency Converter Schneider ATV12H075M2 France
8 Photo electricity of

Inspect bottle

9 Pneumatic Element Airtac Taiwan
10 Rotary Valve F07/F05 No Need for Oil
11 Pneumatic actuator F07/F05 No Need for Oil
12 Low-Voltage Apparatus Schneider FRANCE
13 proximity switch ROKO SC1204-N Taiwan
14 Bearing NSK JAPAN
15 Lead Screw TBI Taiwan
16 butterfly valve CHZNA china
17 Screw Lead Bearing NSK Japan
18 Straight Bearing NSK JAPAN
19 Sliding Bear IGUS Germany


This is tomato paste filling machine test video
