Automatic inline Overflow liquid Filling Machine

Same level thin liquid filling machine

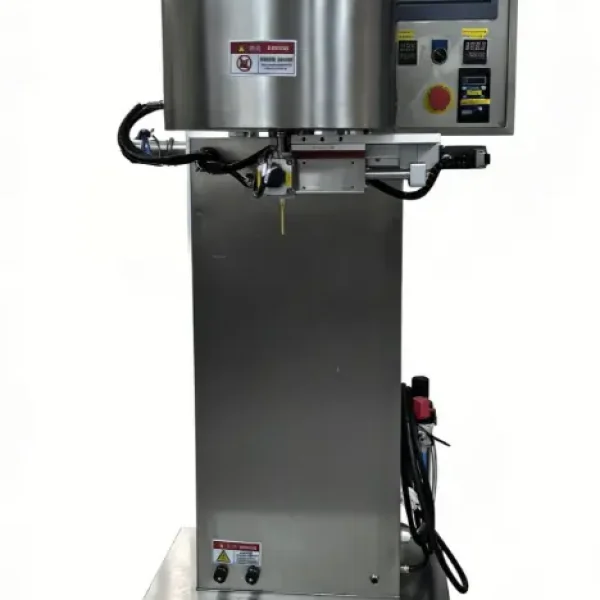

NP-OF Overflow Liquid Filling Machine

The NP-OF overflow liquid filling machine is a high-end liquid filling equipment customized by NPACK for customers in 2020. It is a piece of equipment used in the packaging industry to fill liquid products into containers. It is designed to fill containers to a consistent level, able to overcome small differences in the container’s internal volume. The machine has been redesigned to incorporate the features and advantages of overflow filling machines from domestic and foreign markets. This filling machine is particularly suitable for glass bottles or rigid solid containers, providing precise filling while ensuring visual quality..

The NP-OF machine adopts the most advanced online overflow technology. Compared with traditional standard filling equipment, it has significant performance improvements and shows unparalleled high efficiency. This equipment not only pursues excellence in design, but also achieves precise and stable filling effects in practical applications, winning wide recognition and praise. It has been widely used in more than 20 countries around the world, fully reflecting Npack’s huge influence in the international market, and further proving our firm commitment to providing customers with excellent industrial solutions.

Catalgoue Download

Relying on its rich experience in the field of liquid filling, Npack has successfully established more than 100 efficient industrial filling production lines, becoming a benchmark enterprise in the industry. We have always stood at the forefront of liquid filling technology, constantly innovating and optimizing products, and continuing to lead the development of the industry. Our success not only demonstrates strict compliance with global quality standards, but also reflects our high priority and commitment to customer satisfaction.
The filling head is designed with an advanced back-sucking function to prevent liquid dripping. In addition, the filling process will not start when the bottle is not properly in place, ensuring that each operation is accurate and keeping the work area clean and hygienic.
The machine’s reasonable structural design ensures efficient and reliable operation, making it a versatile choice for various production needs. With its main filling pump, top tank, and side tank, the machine offers a comprehensive solution for liquid filling processes. Its flexibility allows for the installation of 2 to 20 filling heads based on specific production requirements, enabling seamless adjustments in output and filling volume to accommodate diverse production lines. This adaptability is a great choice for companies looking to improve productivity and manufacturing accuracy.
Produced following GMP guidelines, constructed with top-grade 304 or 316 stainless steel for safety and cleanliness. In the filling process, the filling head will be properly inserted into the bottle and seal the bottle opening to effectively prevent the liquid from bubbling or overflowing.This method ensures that the liquid level of each bottle is consistent and achieves perfect filling effects

vacuum filling system
the filling nozzle is driven by a servo motor to move up and down

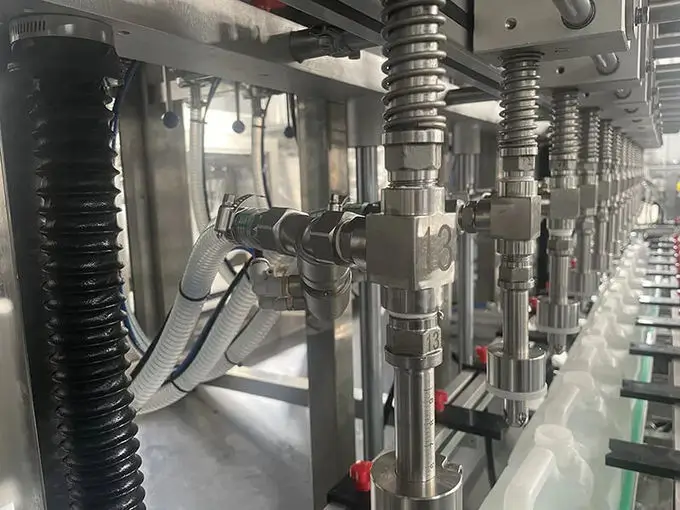

the specially designed overflow filling nozzle.
In cases involving highly corrosive liquid products, this machine can be equipped with PTFE pumps, PTFE hoses, and sealing materials. This configuration effectively prevents corrosive damage to the machine, ensuring its longevity and reliability even when handling aggressive substances.

Technical parameters

Capacity: 800-2500 b/h @ 1L
Filling Volume: 1000-5000ML
Accuracy Liquid level error range : ≤2mm
Power: 2500W, 220VAC
Weight(kg) 180kgs
Air compressor ≤0.6Mpa

The NP-OF liquid filling machine is a top-quality tool that has been expertly customized and designed, commonly utilized in multiple sectors like chemistry, food, and pharmaceuticals. Its design is tailored to distribute thin liquids that foam easily, like soybean oil, hand sanitizer, bleach, and windshield washer fluid.

This NP-OF online liquid filling machine is famous for its precise engineering design, which can efficiently fill products that are easy to produce foam or need to ensure a consistent filling level. It provides a clean and efficient filling solution for handling these challenging liquids, ensuring uniformity and accuracy in each filling. Due to its outstanding performance, the NP-OF liquid filling machine has become an ideal choice for any liquid filling operation that requires precise volume control.

In addition, the design of the NP-OF filling machine is very flexible, especially suitable for packaging operations of glass bottles or durable solid containers. It not only provides a reliable filling process, but also takes into account the aesthetic appearance. It skillfully deals with the complexity related to foam liquid, and ensures the best effect of filling process through fine visual control.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Pressure Gravity Fill to Level Nozzle (Overflow Nozzle)

The overflow nozzle designed by Npack is optimized for handling products ranging from low viscosity to thin liquids. This unique nozzle is particularly suitable for handling liquids that are prone to foaming, and is made of 304 stainless steel and Viton rubber O-rings. In addition, according to the specific needs of customers, other materials such as 316 stainless steel or Teflon can also be selected. This overflow nozzle has the following significant characteristics:

Ensure fill liquid in same level

closed bottle mouth filling

Advanced Automation Vacuum Suck Back For Dripping

Customizable Workflows

How the Pressure Overflow liquid Filling Machine works?

Equipped with 16 filling nozzles, this efficient pressure overflow liquid filling machine can easily adjust to fill bottles of various sizes, from 500ml to 5000ml. Its design ensures precise liquid level for each filling, ensuring consistency in bottle filling.

Feeding bottlings on the conveyor and fix the filling postion.Firstly, place the empty bottle on the conveyor belt, which will transport the bottle to the designated filling position and secure it in place. Next, the conveyor stops running and the equipment automatically clamps the bottleneck to ensure that the bottles remain stable during the filling process. At this point, 16 filling nozzles will be immersed into the bottle one by one, starting the filling process.

Conveyor stops ,clamp the bottles neck, nozzles diving into bottles.During the filling process, the variable speed pump is activated to precisely fill the liquid into the bottle. When the liquid level of the bottle reaches the set height, excess liquid will be returned to the supply tank through the overflow pipeline, ensuring that the liquid level of each bottle is completely consistent.

Finally, after the filling is completed, the nozzle will automatically rise from the bottle, the clamping device will be released, and the conveyor belt will restart to drive the already filled bottles away from the filling position and prepare for the next batch of bottle filling work. In this way, the entire process repeats itself in a loop, with high efficiency and precision.

Conveyor starts moving, and for the next shift bottles filling

Electric control Component Features

We provide highly customized control components for filling machines and standard automation systems, which can meet various customer needs. The fundamental parts of the control system consist of PLC and HMI, utilizing products from internationally recognized manufacturers Siemens and Hitech. These PLCs and HMIs brands are famous for their outstanding quality and adherence to global standards, guaranteeing system stability and reliability.
In terms of electrical components, we have chosen Schneider Electric’s products, which provide strong support for our equipment due to their high quality and internationally recognized standards. For the selection of inverters, we trust Danfoss products, whose efficient performance and excellent stability perfectly meet our needs. The servo motors are of Siemens or Hitech models, which perform well in accuracy and durability, meeting the requirements of high-precision applications.
In the selection of pneumatic components, we have used products from SMC, FESTO, and Airtac, which are widely acclaimed for their innovation and reliability. They provide a solid guarantee for our pneumatic automation system. We chose these brands because of their market proven high quality and excellent compatibility, which can provide customers with efficient and reliable filling solutions, ensuring that equipment operates at its best in various complex production environments.
