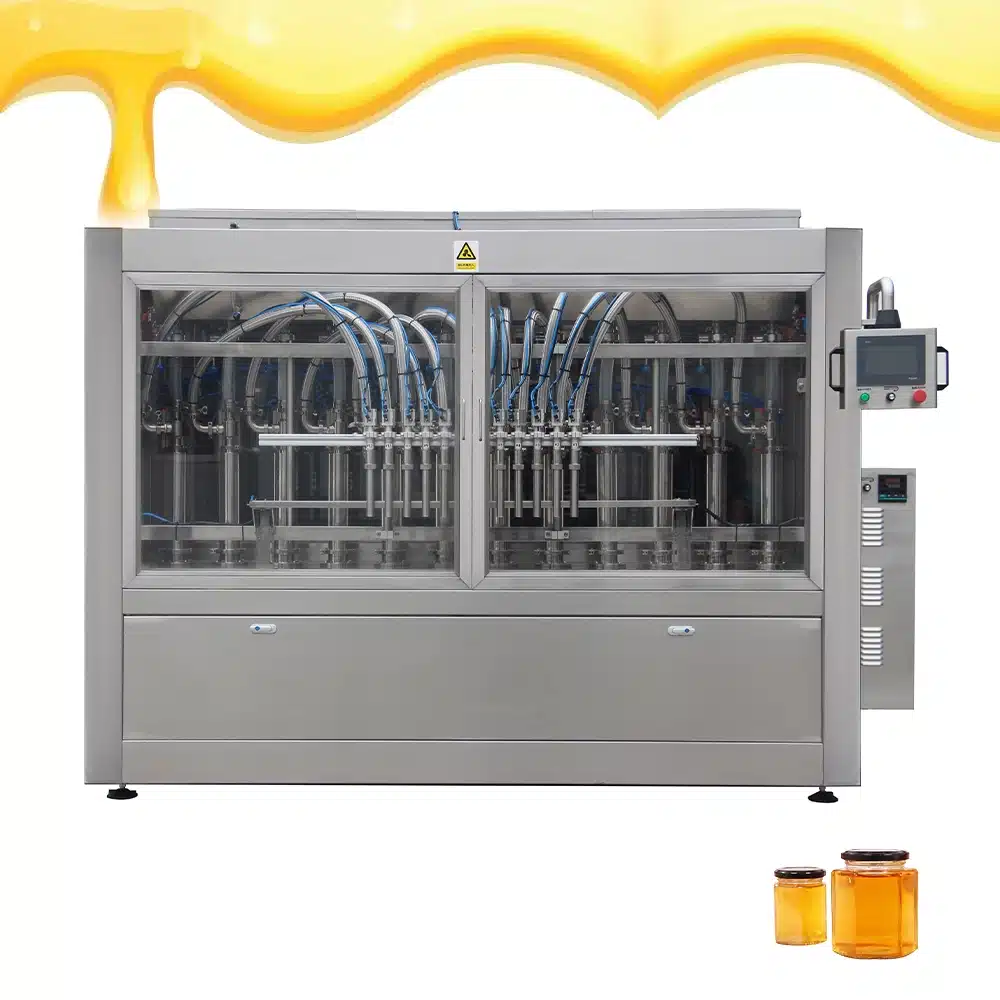

Automatic Honey Filling Machine for Jar/Bottle

The honey filling machine uses a piston/rotor pump for filling, and its body is made of 314/316 grade stainless steel, which is suitable for various viscous materials, such as tomato sauce, mayonnaise, jam, pepper sauce, peanut butter and so on. The u-type hopper is equipped with mixing and heating functions, which is convenient for filling and cleaning; We can customize the 2/4/6/8/10/12/14/16 head filling machine according to the customer’s production capacity.

Category:

What is honey filling machine main Featrue?

The honey filling machine bodies are made of SS304/316 material, which has a longer service life and meets GMP requirements

  • The filling head and measurement method can be customized according to customer materials to meet the filling requirements of different customer materials.
  • The filling machine is equipped with a U-shaped hopper, which has mixing and heating functions. The materials are evenly filled and easy to clean
  • The filling volume and filling speed can be directly adjusted through the touch screen, making it easy to operate and adjust.
  • No bottle or filling function, automatic liquid level control for feeding.
  • Using a submersible filling head for filling can minimize the occurrence of bubbles in the can or bottle, effectively prevent material dripping and leakage, and ensure the cleanliness of the filling equipment and packaging containers.
  • The use of ESG valves ensures accurate and more stable closure, suitable for the food industry, without dead corners, and easy to clean.
  • Tools Free Adjustment System, All adjustment parts with measurement and easy for record
  • honey filling machine



Parameter

Model

NP-VF-2

NP-VF-4

 NP-VF-6 NP-VF-8 NP-VF-10 NP-VF-12 NP-VF-16

Heads

2

 4 6 8 10 12 16

Range（ml）

100-500,100-1000,1000-5000

Capacity（bpm）base on 500ml

 12-14 24-28 36-42 48-56 60-70 70-80 80-100

Air Pressure（mpa）

0.6

Accuracy（%）

±0.1-0.3

Power

220VAC SINGLE PHASE 1500W

 220VAC SINGLE PHASE 3000W



Components

No. Descriptions BRAND ITEM Remark
1 Servo Motor Inovance 2KW CHINA
2 Reducer Fenghua ATF1205-15 Taiwan
3 Conveyor Motor ZhenYu YZ2-8024 China
4 servo drivers Inovance LXM 23DU15M3X CHINA
5 PLC Inovance TM218LDALCODR4PHN CHINA
6 Touch Screen Inovance HMZGXU3500 CHINA
7 Frequency Converter Schneider ATV12H075M2 France
8 Photo electricity of

Inspect bottle

 OPTEX BRF-N Japan
9 Pneumatic Element Airtac Taiwan
10 Rotary Valve F07/F05 No Need for Oil
11 Pneumatic actuator F07/F05 No Need for Oil
12 Low-Voltage Apparatus Schneider FRANCE
13 proximity switch ROKO SC1204-N Taiwan
14 Bearing NSK JAPAN
15 Lead Screw TBI Taiwan
16 butterfly valve CHZNA china
17 Screw Lead Bearing NSK Japan
18 Straight Bearing NSK JAPAN
19 Sliding Bear IGUS Germany

Application

Bottle Type: Plastic Bottle, PET Bottle, Glass Jar, Hexagonal Glass Jar

Filling Volume: 10ML-5000ML

Filling Materials: Sauce, Honey, Jam, Cream, Oil, Paste, Juice, etc.

Application Industry: Food, Beverage, Chemical, Industry 0il

After-sale Service

1. Installation and debugging: NPack provides installation services to assist in the debugging process, including testing and fine-tuning the machine,
To ensure that the packaging machinery is properly set up and ready for operation.
2. Training and education: In order to help customers operate machines effectively, NPack provides training courses for customers’ employees. This includes machine operation, maintenance, troubleshooting, and safety protocols. Training can be conducted on-site or online
3. Maintenance and repair: NPack provides maintenance services to maintain the machine in good working condition. It includes regular inspection, preventive maintenance tasks and replacement of worn parts. If a malfunction occurs, NPack can provide repair services, which can be conducted on-site or through online diagnosis
4. Spare parts and consumables: NPack provides vulnerable parts required for packaging machinery. Customers can quickly obtain the necessary components to effectively maintain and repair their machines.
5. Technical support and troubleshooting: NPacks typically provide technical support to assist customers in resolving any issues they may encounter during machine operation. This can include remote troubleshooting, telephone support, and on-site diagnosis to ensure resolution of customer issues.
