Bag Pouch Top Labeling Machine

Container ,carton, bags and pouch top labeling machines

NP-PL Automatic pouch bag labeling machine

The Automatic pouch bag labeling machine is an automatic, versatile sticker label applicator which designed for precision labeling on the top and bottom surface of various containers, such as flat, edge-sealed bags—including zipper bags, stand-up pouches, paper bags, boxes, and other flat products or packagings. It excels in industry fields like food and beverage, grain and oil, pharmaceuticals, daily chemicals, and the broader chemical industry, providing a reliable solution for enhancing product presentation and compliance with industry standards. This machine’s adaptability and efficiency make it indispensable for businesses aiming to optimize their packaging processes.

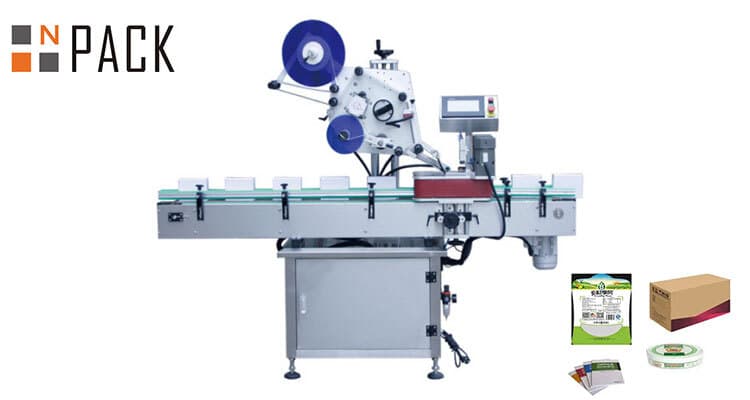

bag-labeling-machine

The bag sticker labeling machine is designed with precision and adaptability labeling, featurs several standout characteristics to cater to a variety of packaging requirements, and it mainly consist of 3 parts, pouch or bag automatic feeder, vacuum conveyor belt and labeling applicator.

  1. Precision Label Placement and fast feeding, the machine is powered by panasonic or siemens servo motors and PLC control, it guarantees labels are applied accurately, free from wrinkles or air bubbles.
  2. Widely applcation range Bag, it is Capable of labeling a diverse array of bag types, such as flat, stand-up, and angle-supported bags, ensuring wide application scope.
  3. Flexible Labeling Options: Offers the versatility to apply labels on various parts of the bag including the front, back, top, bottom, or sides, aligning with specific packaging designs.
  4. Adaptable to Various Label Sizes and Shapes: Supports a range of label dimensions and forms, from standard rectangles and circles to custom shapes, to meet different packaging demands.
  5. Ease of Use: Equipped with a Siemens color HMI for straightforward adjustments to label specifications and placement, enhancing user experience.
  6. High-Quality Construction: Made from 304/316 stainless steel, it meets GMP standards for cleanliness and durability.
  7. Customizable Settings: Allows for adjustment of labeling height and angle, as well as the speed of the conveyor belt and labeling, complemented by a label counter for efficient operation, maintenance simplicity, and prolonged service life.

This machine’s combination of accuracy, flexibility, and ease of operation makes it an essential tool for industries ranging from food and beverages to pharmaceuticals and chemicals, streamlining their packaging processes with efficiency and reliability.

Technical Parameters
Machine Size1600(L)×1000(W)×1250(H)mm
Output Speed20-100pcs/min depends on label and bottle size
Height Label Object30-280mm
Bag sizemax L60cm; max W 40cm; max H10cm
Label Height15-140mm
Label Length25-300mm
Pastes the sign precision±1mm
Roll inside76mm
Roll Outside Diameter300mm
Power Supply220V 0.8KW 50/60HZ
Power Supply2800(L)×1650(W)×1500(H)mm
Weight of Labeling Machine450Kg
Main Technicals
  1. Label roll loading: The label roll is loaded onto the labeling mechanism of the labeling machine.
  2. Bag feeding: The bag is fed into the conveyor system of the machine and separated by a pagination mechanism with appropriate spacing to ensure accurate label pasting.
  3. Label application: The flat labeling machine attaches the label to the bag and presses the label tightly through a roller to remove bubbles.
  4. Product discharge: The labeled bags are transported out of the machine, and after labeling, they can be boxed or further processed according to specific production requirements.
  1. Automatic pouch and bag feeding system,automatic paging machine or a pneumatic pick and place system
  2. Vacuum conevyor transferring
  3. automatic ink printer or ribbon printer
