Chilli Sauce Filling Machine Sauce Filler Equipment

The full-automatic piston Chili sauce and paste filling machine is made by npack and is suitable for filling semi liquid products with or without small particles, such as Chili sauce and paste, peanut butter, jam, fish sauce, etc

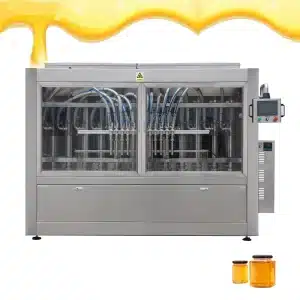

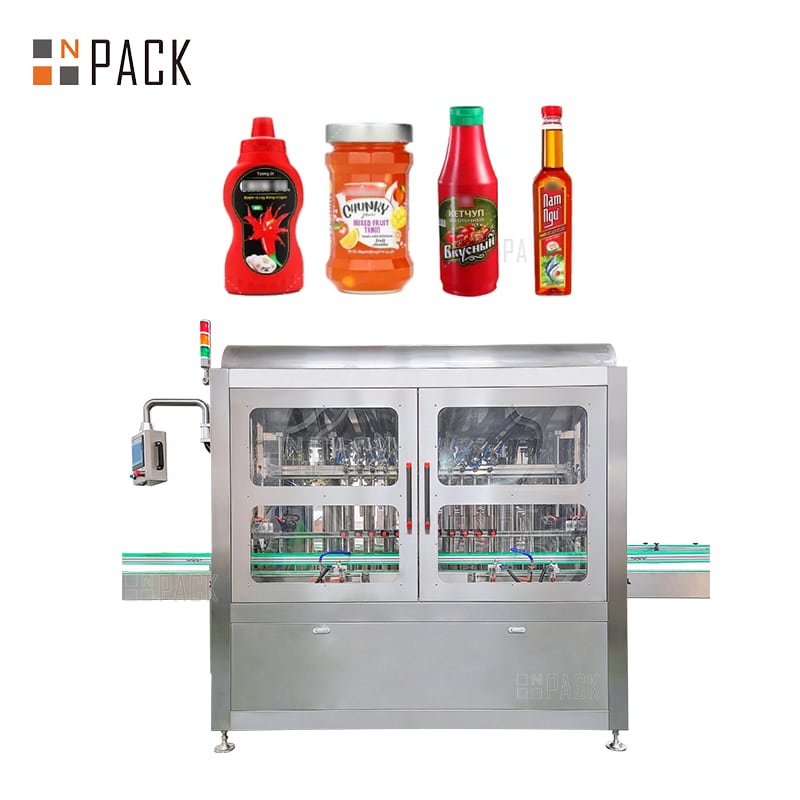

Chilli Sauce Filling Machine

The chilli sauce filling machine is made by npack and is suitable for filling semi liquid products with or without small particles, such as Chili sauce and paste, peanut butter, jam, honey fish sauce, etc. Using a volumetric piston pump to fill materials, with high filling accuracy, equipped with a U-type hopper, with mixing and heating functions, and simple cleaning; All airframes are made of SS304/316 material, which complies with GMP standards; We can customize filling heads such as 4/6/8/12/according to customers’ production capacity to meet their diverse needs; Therefore, the full-automatic piston Chili sauce and paste filling machine is an ideal quantitative liquid filling equipment for small and medium-sized enterprises.

Chilli Sauce Filling Machine Work Flow

The working process of the Chili sauce and paste filling line usually includes five parts: preparation, container placement, filling screw cap labeling, and accurate and efficient packaging of chili sauce. The following is the specific workflow for capping and labeling chili sauce filling:
Preparation: Before operating the machine, first clean and disinfect the machine, then ensure that there is enough Chili sauce and paste in the hopper, and finally adjust the machine setting according to the required filling volume.
Container placement: empty glass jars or pet bottoms are placed in the designated area or transmission system, and moved through the filling machine to align and position the glass jars or pet bottoms to receive Chili sauce and paste.
Filling process: When the container moves along the conveyor belt or in a rotating system to the filling mechanism. The filling nozzle will descend or move towards the glass jar or pet bottom. Chili sauce and paste is distributed into the container in a controlled way and then filled
Capping process: After the glass jar or pet bottle is filled, it will be moved to the capping mechanism, and an automated system will be used to add the lid or lid to the container, securely sealing to prevent leakage and ensure product freshness.
Labeling and packaging: After the glass can or pet bottle is sealed, enter the labeling station and affix the product label. Afterwards, place them in cardboard boxes or boxes and prepare them for storage or transportation.
All are using automated control systems to save labor costs and improve production efficiency. Therefore,
Full automatic piston Chili sauce and paste filling machine is the best choice to improve production efficiency and expand production line



Main Feature

1. The machine has a beautiful appearance, reasonable structural design, moderate volume, and convenient operation.
2. Adopting a servo control system with high filling accuracy
3. Provide customized services, allowing customers to customize filling heads such as 4/6/8/12/according to their production capacity.
4. Configure touch screen, human-computer interaction, and easy operation
5. Set the emergency stop button, and the Factor of safety is high
6. Suitable for filling semi liquid products with or without small particles

Application

Bottle Type: Plastic Bottle, PET Bottle, Plastic Jar, Glass Jar, Heteromorphic Bottle

Filling Volume: 100ML-5000ML

Filling Materials:Pesto Sauce, Sweet Chili Sauce, Bbq Sauce, Mornay Sauce ,Peanut Sauce,etc.

Application Industry: Food, Beverage, Chemical, Industry 0il

Parameter

Model

NP-VF-2

NP-VF-4

NP-VF-6 NP-VF-8 NP-VF-10 NP-VF-12 NP-VF-16

Heads

2

4 6 8 10 12 16

Range(ml)

100-500,100-1000,1000-5000

Capacity(bpm)base on 500ml

12-14 24-28 36-42 48-56 60-70 70-80 80-100

Air Pressure(mpa)

0.6

Accuracy(%)

±0.1-0.3

Power

220VAC SINGLE PHASE 1500W

220VAC SINGLE PHASE 3000W

Components

No. Descriptions BRAND ITEM Remark
1 Servo Motor Inovance 2KW CHINA
2 Reducer Fenghua ATF1205-15 Taiwan
3 Conveyor Motor ZhenYu YZ2-8024 China
4 servo drivers Inovance LXM 23DU15M3X CHINA
5 PLC Inovance TM218LDALCODR4PHN CHINA
6 Touch Screen Inovance HMZGXU3500 CHINA
7 Frequency Converter Schneider ATV12H075M2 France
8 Photo electricity of

Inspect bottle

OPTEX BRF-N Japan
9 Pneumatic Element Airtac Taiwan
10 Rotary Valve F07/F05 No Need for Oil
11 Pneumatic actuator F07/F05 No Need for Oil
12 Low-Voltage Apparatus Schneider FRANCE
13 proximity switch ROKO SC1204-N Taiwan
14 Bearing NSK JAPAN
15 Lead Screw TBI Taiwan
16 butterfly valve CHZNA china
17 Screw Lead Bearing NSK Japan
18 Straight Bearing NSK JAPAN
19 Sliding Bear IGUS Germany

After-sale Service

1. Installation and debugging: NPack provides installation services to assist in the debugging process, including testing and fine-tuning the machine,
To ensure that the packaging machinery is properly set up and ready for operation.
2. Training and education: In order to help customers operate machines effectively, NPack provides training courses for customers’ employees. This includes machine operation, maintenance, troubleshooting, and safety protocols. Training can be conducted on-site or online
3. Maintenance and repair: NPack provides maintenance services to maintain the machine in good working condition. It includes regular inspection, preventive maintenance tasks and replacement of worn parts. If a malfunction occurs, NPack can provide repair services, which can be conducted on-site or through online diagnosis
4. Spare parts and consumables: NPack provides vulnerable parts required for packaging machinery. Customers can quickly obtain the necessary components to effectively maintain and repair their machines.
5. Technical support and troubleshooting: NPacks typically provide technical support to assist customers in resolving any issues they may encounter during machine operation. This can include remote troubleshooting, telephone support, and on-site diagnosis to ensure resolution of customer issues.
