Motor Oil Filling Machine Oil Bottle Filling Machine

The automatic motor oil filling machine is a linear filling machine, which adopts servo-driven piston quantitative filling, and can fill liquid and cream materials such as engine oil, lubricating oil, grease, etc. Replace the bottle and adjust the filling volume, the filling accuracy is high and the speed is fast.

The motor oil filling machine is manufactured by npack according to the characteristics of the oil. It is suitable for filling various viscous liquids. The whole machine is made of corrosion-resistant material, which is corrosion-resistant and durable. The contact with the material is made of 304 or 316L stainless steel, which is corrosion-resistant and easy to disassemble. Simple, in line with GMP standards. There are no bubbles or drips in the filling process, and it is suitable for filling various bottle types of 50-5000ml. It is suitable for filling containers of different specifications. The filling specification can be switched within a few minutes, with short filling cycle and high production capacity. . There is no need to add spare parts to change the filling specification, it only needs to be adjusted. The production machine can be customized according to the customer’s production volume, supporting 6/8/10/12/18 filling heads

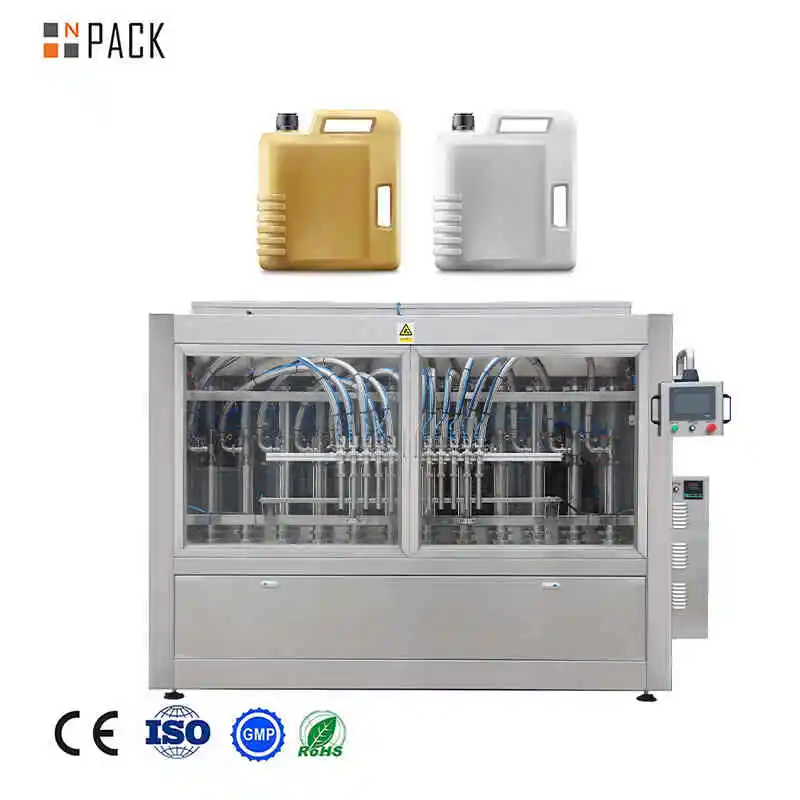

motor oil filling machine

Main Feature

1. The motor oil filling machine is a piston type filling machine with high filling precision and fast filling speed.
2. Equipped with PLC control system, one-key adjustment, high degree of automation
3. The filling head is equipped with a drip function, which is anti-drip and has no drip phenomenon.
4. The whole machine is suitable for bottles of different sizes, and the filling volume can be set freely and automatically adjusted, which is convenient and quick. Can be completed in a short time
5. The contact with the material is made of 304 or 316L stainless steel, corrosion-resistant, easy to disassemble, and conforms to the GMP standard
6. The Motor oil filling machine runs smoothly and has stable performance. It can be used in conjunction with packaging equipment such as capping machines, labeling machines, bottle washing machines, and palletizers to improve production efficiency.

Motor oil Filling Process
Manual bottle placement → automatic detection of bottle mouth and nozzle drop position → automatic filling → automatic cap placement → automatic capping → automatic labeling and coding → manual palletizing

Product Detail

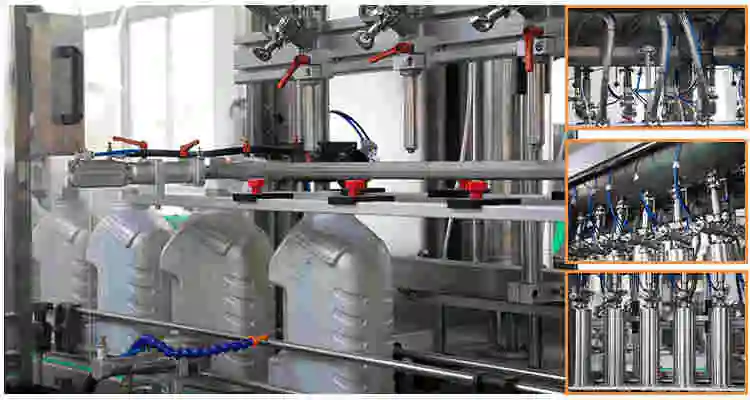

engine oil filling machine details
engine oil filling machine details

Filling Accuracy: ±0.1-0.5%

Filling volume:500ml-5l can be customized

Bottle Type:Pail, Bucket, Bottle,Can

Packaging Type: Strong Wooden Case

After Warranty Service:Video technical support

Applicable Industries:Food ;Pharmaceutical;Chemical;Cosmetic

Filling Materials: engine oil, lubricating oil, grease, motor oil,edible oil, etc.







NP-VF-6 NP-VF-8 NP-VF-10 NP-VF-12 NP-VF-16



4 6 8 10 12 16



Capacity(bpm)base on 500ml

12-14 24-28 36-42 48-56 60-70 70-80 80-100

Air Pressure(mpa)








No. Descriptions BRAND ITEM Remark
1 Servo Motor Inovance 2KW CHINA
2 Reducer Fenghua ATF1205-15 Taiwan
3 Conveyor Motor ZhenYu YZ2-8024 China
4 servo drivers Inovance LXM 23DU15M3X CHINA
6 Touch Screen Inovance HMZGXU3500 CHINA
7 Frequency Converter Schneider ATV12H075M2 France
8 Photo electricity of

Inspect bottle

9 Pneumatic Element Airtac Taiwan
10 Rotary Valve F07/F05 No Need for Oil
11 Pneumatic actuator F07/F05 No Need for Oil
12 Low-Voltage Apparatus Schneider FRANCE
13 proximity switch ROKO SC1204-N Taiwan
14 Bearing NSK JAPAN
15 Lead Screw TBI Taiwan
16 butterfly valve CHZNA china
17 Screw Lead Bearing NSK Japan
18 Straight Bearing NSK JAPAN
19 Sliding Bear IGUS Germany
